The tailor-made packaging  is our contribution to ensure an efficient delivery process for our customers.

Packaging machines

Increasingly shorter product cycles are changing the requirements during the operating life of the machines – that is why PAXMATIC® machines provide a modular design that ensures adjustments at any time. Further flexibility is granted through our PAXMATIC® software, where you can choose the clock frequency, measurements of the bag, welding parameters and the system language. Features like jolting, check weighing, counting of divergent parts and further functions can also be integrated within the packaging process.

Angular in-line packaging machine.

  • cycling speed: up to 60 bags/min
  • bag width: up to 280/450 mm
  • bag length: infinitively variale
  • passage clearance: 90/180 mm
  • film thickness: approx. 40 up to 150 my
PDF
F28
In-line bagging machine

Compact, vertical, in-line packaging machine. Uses vairous types of flat films (PE,PP, composite).

  • cycling speed: up to 60 bags/min
  • bag width: up to 280 mm
  • bag length: max. 250 m
  • max. ø of filling tube: 130 mm
  • film thickness: approx. 40 up to 150 my
PDF
F28RD
In-line bagging machine

Compact, vertical in-line bagging machine.

  • cycling speed: up to 30 bags/min
  • bag width: 50 up to 280/450/650 mm
  • bag length: infinitively variable
  • passage clearance: 90/150 mm
  • film thickness: approx. 40 up to 150 my
PDF

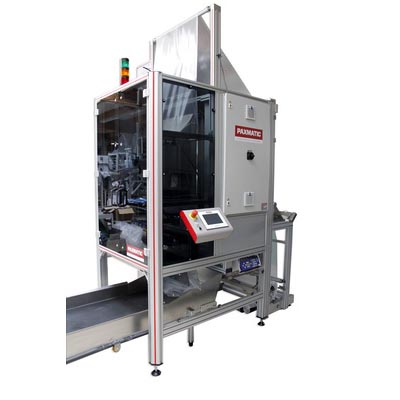

H28/45/65
In-line bagging machine

Compact, vertical, in-line packaging machine for various types of flat films (PE, PP, composite).

  • cycling speed: up to 30 bags/min
  • bag width: up to 280 mm
  • bag length: infinitely variable
  • passage clearance: 90 mm
  • film thickness: approx. 40 up to 150 my


PDF
R80
In-line bagging machine

Compact, vertical, in-line packaging machine. Uses polyethylene-flat film.

  • cycling speed: up to 20 bags/min
  • bag width: up to 200 mm
  • bag length: up to 190 mm
  • passage clearance: 80 mm
  • film thickness: approx. 40 to 120 my
PDF
F20
In-line packaging machine

Compact, vertical, in-line packaging machine with ultrasonic transversal sealing. Profile constuction allows flexible design.

  • cycling speed: up to 50 bags/min
  • bag width: up to 280 mm
  • bag length: max. 240 mm
  • film thickness: approx. 40 up to 150 my
PDF
F28 Ultrasonic
In-line bagging machine

Compact, vertical, in-line packaging machine with lateral filling tube. Uses various polyethylene - folded films.

  • cycling speed: up to 20 bags/min
  • bag width: up to 200 mm
  • bag length: up to 190 mm
  • passage clearance: 80 mm
  • film thickness: approx. 40 up to 120 my
PDF

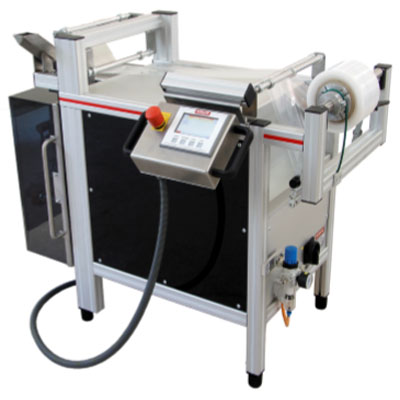

H20
In-line bagging machine

Compact, vertical, in-line packaging machine. Uses varous folded films (PE, PP, composite).

  • cycling speed: up to 50 bags/min
  • bag width: up to 280 mm
  • bag length: up to 190 mm
  • passage clearance: 90 mm
  • film thickness: approx. 40 up to 120 my
PDF

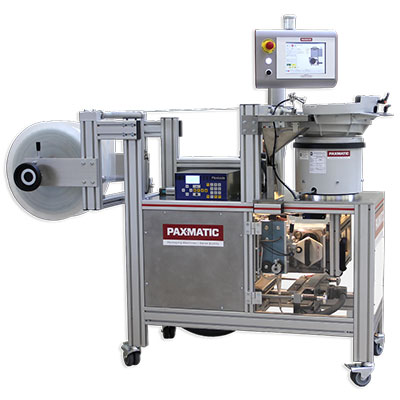

W22
In-line bagging machine
